Crushing Equipment

Home / PRODUCT / Crushing Equipment

  • /img/crawler-mobile-crusher.jpg

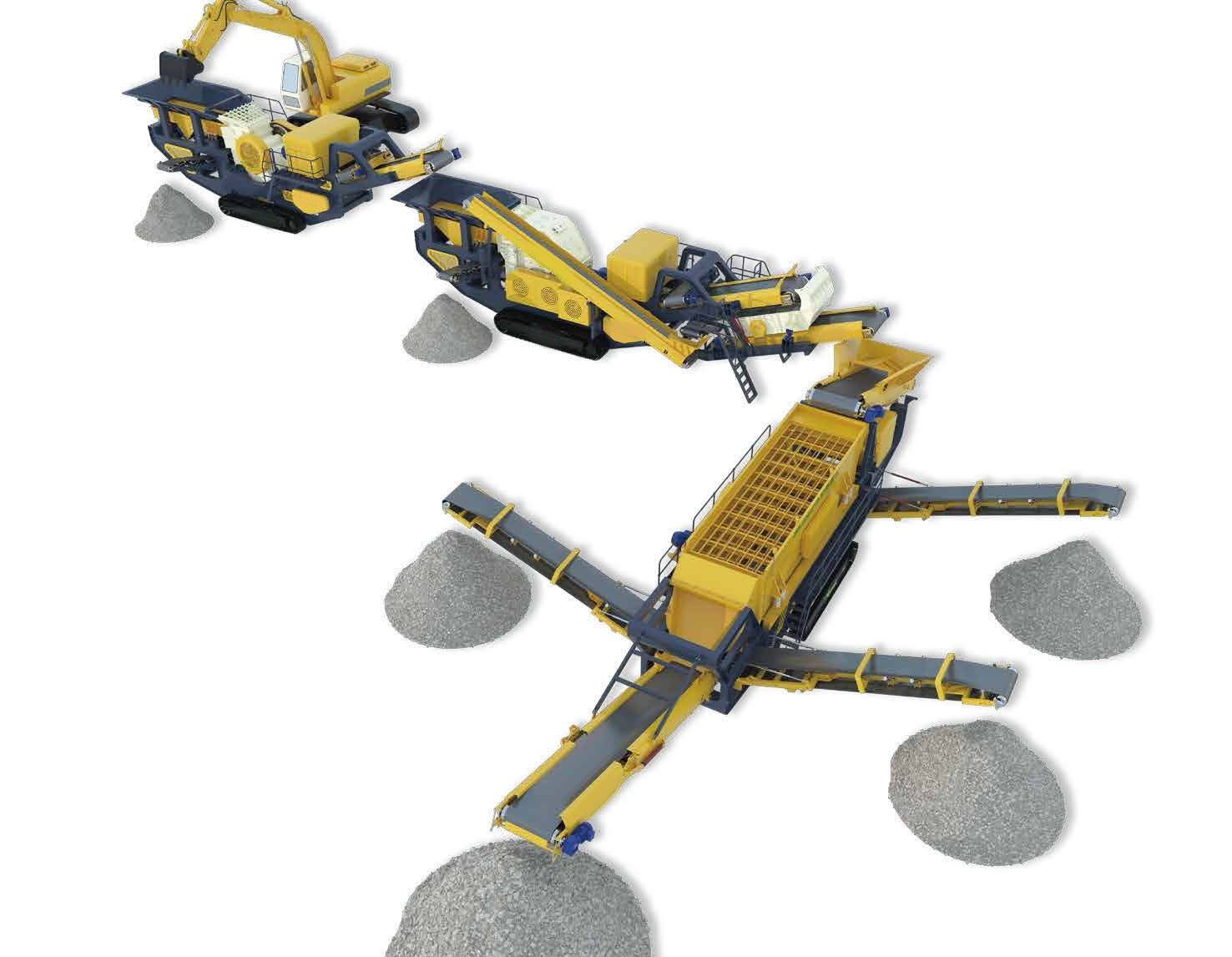

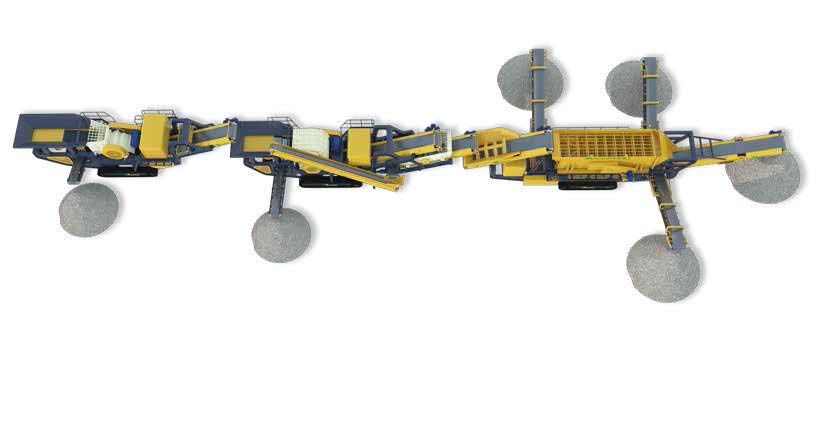

Crawler mobile crusher

No matter for crushing supper hard ores, or medium/ low hardness minerals, limestone, asphalts, or crushing and screening works in other industries, we can always offer you professional, highly efficient, economical, energy-saving, optimized solution.







Input size:  0-800mm
Capacity: 50-350tph
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron oreetc.
Description

The reason we call it C series, is because we creatively combined crushing plant and screening plant together in one unit, and make it compact and highly flexible, multifunctional, operation-friendly, productive, cost-saving. Customers can only invest in one device to obtain two major functions of crushing and screening, which greatly save the cost.

Working principle





Product Advantage

1. We pay great attention to product quality, as well as post-service

2. 7*24 hours full range of technical support and excellent after-sales service.

3. All original parts are made of high-quality material with special process and technical.

4. We provides a comprehensive and easy-to-understand training course to our employees in machines' life time.

Technical Parameters



KD-2000

KD-3000

Feeding equipment

Feeding capacity (t/h)

300

400

Max. feeding size (mm)

600

750

Feeding height (mm)

3500

3800

Bucket capacity (M3)

4

5

Vibrating feeding machine

Length*width (mm)

3500*750

3600*800

Power (kw)

6

11

Crusher

Impact/hammer crusher

4000/470

4800/550

Crusher opening L*W (mm)

1150*750

1360*970

Max feeding grain size (mm)

400

500

Crusher weight (t)

13.5/8

20/13

Crusher power (kw)

132

200/185

Main Belt

Height (mm)

4500

5400

Length*width (mm)

12000*1000

14000*1000

Main belt power (kw)

11

15

Screening machine

Length*width (mm)

4515

5518

Power (kw)

15

18.5

Transitional belt

Length*Width (mm)

2000*500

2200*500

Power (kw)

2.2

2.2

Returning charge belt

Length*Width (mm)

8000*500

9000*500

Power (kw)

4

4

Belt A

Length*Width (mm)

5000*500

5000*500

Power (kw)

4

4

Belt B

Length*Width (mm)

5000*500

5000*500

Power (kw)

4

4

Belt C

Length*Width (mm)

6000*1000

6000*1000

Power (kw)

5.5

5.5

Overall unit

Walking Engine power (kw)

106

106

Total weight (t)

45

62

Processing capacity (t/h)

100-200

180-300

Transportation dimension

Length*Width*Height (m)

17*3.2*3.6

19.5*3.2*3.8

Total power (kw)

183.7

265.7/250.7



Note:

  1. Crushing capacity is related to the feeding material hardness, feeding material sizes and discharge sizes.
  2. Standard configuration: Rear conveyor belt, manual control, wireless remote controller.
  3. Optional accessories: returning feeder, iron separator, dust control and spraying system.
  4. The above technical data is for reference, and specific data should be considered with the actual equipment.
