PF series impact crusher

We have 20 year's experience on manufacturing the impact crusher

Input Size:

0-500mm

Capacity:

35-550TPH

Material:

Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

Description



PF Impact Crusher is a kind of hammer crusher, can crush the large, medium and small size materials (granite, limestone, concrete, etc.) with max feed size less than 500mm and compression strength less than 350Mpa in cubic shape.
It is widely used in metallurgy, mine, cement, chemical engineering, fire resistant materials, ceramics and other industrial sectors, as well as in the expressway construction, water conservancy project, building crushed stone, and machine-made sand process fields, etc.

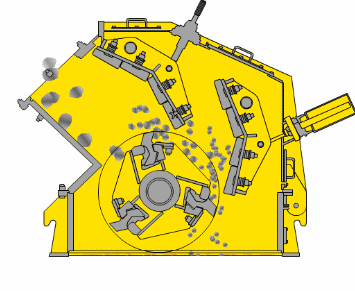

Working principle

PF Impact Crusher uses impact energy to crush the materials. The rotor rotates at a high speed under the driving force of motor. The materials entering from the inlet impacts the plate hammer on the rotor and would be crushed under the high-speed impact of the plate hammer. The crushed materials would be thrown back to the liner plate for crushing again. Finally, the materials are discharged from the outlet of PF Impact Crusher.



Product Advantage

1. Heavy-duty rotor with big rotary inertia and high precision, higher crushing efficiency

2. Cubical shape end product

3. Unique impact lining plate with high wear resistance

4. Blow bar made of high-chromium iron with advantages of high wear resistance

5. Upper shell can be opened by hydraulically or manually

6. No-key connection

7. Two or three impactors can be available

8. Small noise and environmental-friendly

Technical Parameters

Model

Rotor specifi (mm)

Feed opening size
(mm )

Max.feed size
  (mm)

Capacity
(t/h)

Motor power
(kw)

Weight
(t)

Dimension
(L×W×H)
(mm)

PF-1007

φ1000×700

400×730

300

35-50

30-55

9.45

2400×1558×2660

PF-1010

φ1000×1050

400×1080

350

50-80

55-75

12.2

2400×2250×2660

PF-1210

φ1250×1050

400×1080

350

70-120

110-132

14.4

2690×2338×2890

PF-1214

φ1250×1400

400×1430

350

95-160

132-160

16.85

2690×2688×2890

PF-1316

φ1300×1600

858×1640

350

150-220

200

19.5

3096×3273×2667

PF-1010V

φ1000×1050

400×1080

350

50-80

55-75

13.2

2400×2250×2660

PF-1210V

φ1250×1050

400×1080

350

70-120

110-132

15.1

2696×2338×2890

PF-1214V

φ1250×1400

400×1430

350

95-160

132-160

17.85

2690×2688×2890

PF-1310V

φ1300×1050

490×1170

350

70-120

110-160

13.5

2780×2478×2855

PF-1315V

φ1320×1500

860×1520

350

100-180

180-220

20.75

3007×2749×2556

PF-1515V

φ1500×1500

850×1580

350

220-280

280-315

28.5

3553×2835×3277

PF-1620 V

φ1640×2000

800×2020

400

400~550

250×2

39

3505×3740×3085

Note:

1.The bulk specific weight is calculated by 1.6t/m³.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that PYM may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, PYM keeps the right to explain all data involved in this website.
