PY compound cone crusher

PY cone crusher is also called compound cone crusher in shanghai, the PY cone crusher is classic design with stable performance. The hydraulic cylinder can make the maintenance more easier.

Input size: 0-300mm
Capacity: 0-800tph
Material:  Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.
Description

PY cone crusher is a kind of compound cone crusher, which can crush materials of over medium hardness. It is mainly used in mining, chemical industry, road and bridge construction, building, etc. As for PY cone crusher, there are four crushing cavities (coarse, medium, fine and superfine) to choose. Compared with the same type, PY cone crusher make materials have higher comminution degree and higher yield. In addition, PY cone crusher’s enhanced laminating crushing effect on material particles makes the cubic shape of crushed materials better, which increases the selling point.

Working principle

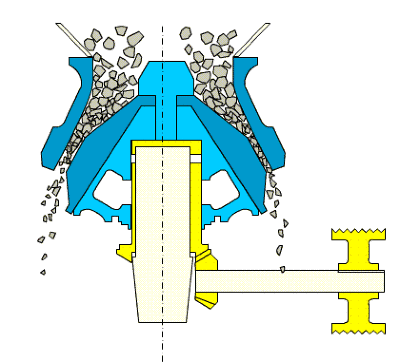

A cone crusher breaks rock by squeezing the rock between an eccentrically gyrating spindle, which is covered by a wear-resistant mantle, and the enclosing concave hopper, covered by a manganese concave or a bowl liner. As rock enters the top of the cone crusher, it becomes wedged and squeezed between the mantle and the bowl liner or concave. Large pieces of ore are broken once, and then fall to a lower position (because they are now smaller) where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher.

Product Advantage

1. Hydraulically adjust the discharge opening size

2. Hydraulically cleaning the cavity if there is unbreakable material feed in, protecting the machine from getting damaged

3. Special lubricating device, dust-proof and preventing oil-leakage

4. Mechanical interlocking system to save the wearing parts replacement time

5. Spring over-load protection ensuring machine not damaged by the metal passing through the crusher

Technical Parameters



Model



Cavity type

max.feed size (mm)

Mini.closed side setting
(mm )

Motor power
(kw)

Capaicty(TPH) at each closed side setting(mm)

Weight
(t)

6

10

13

16

19

22

25

38

51

64

PY1000

C

160

13

90-110





80

100

135

150

175

235





10.8

M

115

10

90-110



65

75

90

120

135

150







10.8

F

80

8

90-110

50

55

65

70

78

95









10.51

EF

50

6

90-110

52

62

72

78

102











10.51

PY1160

C

180

13

110-132





115

135

150

180

200

260





15.5

M

130

10

110-132



100

110

120

135

165

175







15.5

F

90

10

110-132



80

105

110

140











15.5

EF

60

6

110-132

60

74

105

110

130











15.5

PY1300

C

200

16

132-160







150

180

200

230

310

390



22.3

M

150

13

132-160





115

140

160

190

210







22.3

F

102

10

132-160



90

115

145

160











22.3

EF

70

8

132-160



88

110

135

155











22.3

PY1380

C

215

19

185-220









200

220

260

330

420



26.3

M

160

16

185-220







155

180

200

220







26.3

E

115

13

185-220





150

190

210

230









26.3

EF

76

8

185-220



122

148

185

200











26.3

PY1500

C

235

22

220-250









240

265

300

400

510

570

37.75

M

175

19

220-250









215

240

265

320





37.75

F

130

13

220-250





180

210

235

255

275







37.75

EF

90

10

220-250



148

178

220

265











37.75

PY1680

C

267

22

250-300











330

390

525

655

725

44.3

M

203

16

250-300







230

270

300

330







44.3

F

140

13

250-300



185

225

265

340











44.3

EF

95

10

250-300



180

220

260

335











44.3
