  • /img/pe_series_primary_jaw_crusher-92.png

PE series primary jaw crusher

As a classic primary crusher with stable performances,PE series jaw crusher is usually used as primary crusher in quarry production lines, mineral ore crushing plants and powder making plants.

Input Size: 0-1020mm
Capacity: 0.6-1000TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Description

 PE Jaw Crusher is widely used for crushing all kinds of ores and stones into small pieces in mining, metallurgy, building material, highway, railway, water conservation and chemical industries etc.

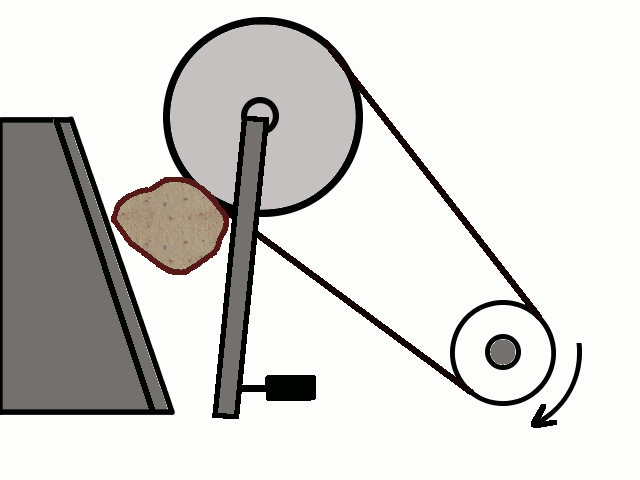

Working principle

A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw called a movable jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker, to crush the big stone into small pieces.

Product Advantage

1.Inheritance of century-old classics

2.Big ratio of crushing, high productivity

3.Big adjusting range of discharge opening size

4.Simple structure, high reliability, convenient maintenance

5.Stable running with small noise

Technical Parameters

Model

Feed opening sizemm

Max.feed sizemm

Discharge opening size mm

Capacityt/h

Eccentric shaft rotationr/min

Motor powerkw

Weightt

PE-150×250

150×250

125

10-40

0.6-3

300

5.5

1

PE-250×400

250×400

210

20-60

3-13

300

15

2.8

PE-400×600

400×600

340

40-100

16-55

275

30

6.5

PE-500×750

500×750

425

50-100

32-80

275

55

10.3

PE-600×900

600×900

500

65-160

50-120

250

55-75

15.5

PE-750×1060

750×1060

630

80-140

100-180

250

110

28

PE-800×1060

800×1060

640

100-200

136-230

250

110

29

PE-870×1060

870×1060

660

200-260

190-336

250

110

30.5

PE-900×1200

900×1200

750

120-240

180-280

200

132

46.5

PE-1000×1200

1000×1200

850

220-340

320-350

200

132

47

PE-1200×1500

1200×1500

1000

150-300

300-500

180

200

79

PE-1500×1800

1500×1800

1200

220-350

450-1000

180

355

122

PEX-150×750

150×750

120

18-48

5-16

320

15

3.5

PEX-250×750

250×750

210

25-60

8-22

330

22

4.9

PEX-250×1000

250×1000

210

25-60

16-52

330

30-37

6.5

PEX-250×1200

250×1200

210

25-60

20-60

330

37

7.7

PEX-300×1300

300×1300

250

20-90

16-104

300

55

11

PEX-350×1200

350×1200

300

70-140

20-120

300

75

11.43

Note:

1.The bulk specific weight is calculated by 1.6t/m³.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that PYM may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, PYM keeps the right to explain all data involved in this website.
