Hydraulic impact crusher

To satisfy users’ requirements for high profits, low costs, energy saving, and easy maintenance, Shanghai PYM has developed the new generation of high-efficiency hydraulic impact crusher. It is the ideal upgrading product of conventional crushing equipment.

Input Size:

0-350mm

Capacity:

35-300TPH

Material:

Limestone, feldspar, calcite, talc, barite, dolomite, kaolin, gypsum, graphite, etc.

Description

Based on our rich experience from the site, Shanghai PYM has developed the new generation of high-efficiency hydraulic impact crusher. it is also called European impact crusher. It adopt the automated hydraulic jacking device which make checks and maintenance easier and reduces labor costs.

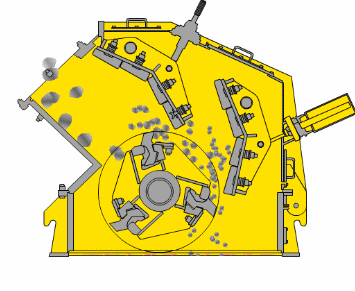

Working principle

Hydraulic Impact Crusher uses impact energy to crush the materials. The rotor rotates at a high speed under the driving force of motor. The materials entering from the inlet impacts the plate hammer on the rotor and would be crushed under the high-speed impact of the plate hammer. The crushed materials would be thrown back to the liner plate for crushing again. Finally, the materials are discharged from the outlet of PF Impact Crusher.

Product Advantage

1. The Hydraulic Impact Crusher is designed with a multi crushing cavity.
2.Built with a newly designed wear-resistant hammer and gear impact liner made from high quality chromium to reduce wear.
3.Able to produce bulk amounts of evenly sized cubic shaped material.
4.The Hydraulic Impact Crusher is able to discharge bulk amounts of cubic shaped material.
5.Low and wide feeding inlet opening is convenient for feeding large material and assembly of line.
6.Easy to operate and repair and can be used in different crushing operations.
7.Easy adjustment process which simplifies process.
8.An even-shaped plate design discharges smaller sized, cubic shaped, and crackfree material.

Technical Parameters

Model

Feeding opening size (mm)

Max feeding size (mm)

Capacity (t/h)

Power (kw)

Weight (kg)

Dimensions (mm)

HM130

1350×500

300

120-200

132-200

17465

3010×2450×2750

HM150

1530×500

350

200-300

200

36230

3200×2630×3080

Electrical requirement

380 to 420V, AC(50/60Hz) or according to local standard

Temperature range

-50℃ to 70℃

Adjustment mode

Hydraulic

Opening cover way

Hydraulic system

Raw material water content

≤20%

Design Type

Normal & Euro Type

Electric Control system

ABB & Schneider, PLC

Crush method

Stone to stone crushing

Standard

Euro standard

Note:

1.The bulk specific weight is calculated by 1.6t/m³.

2.Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that PYM may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, PYM keeps the right to explain all data involved in this website.
