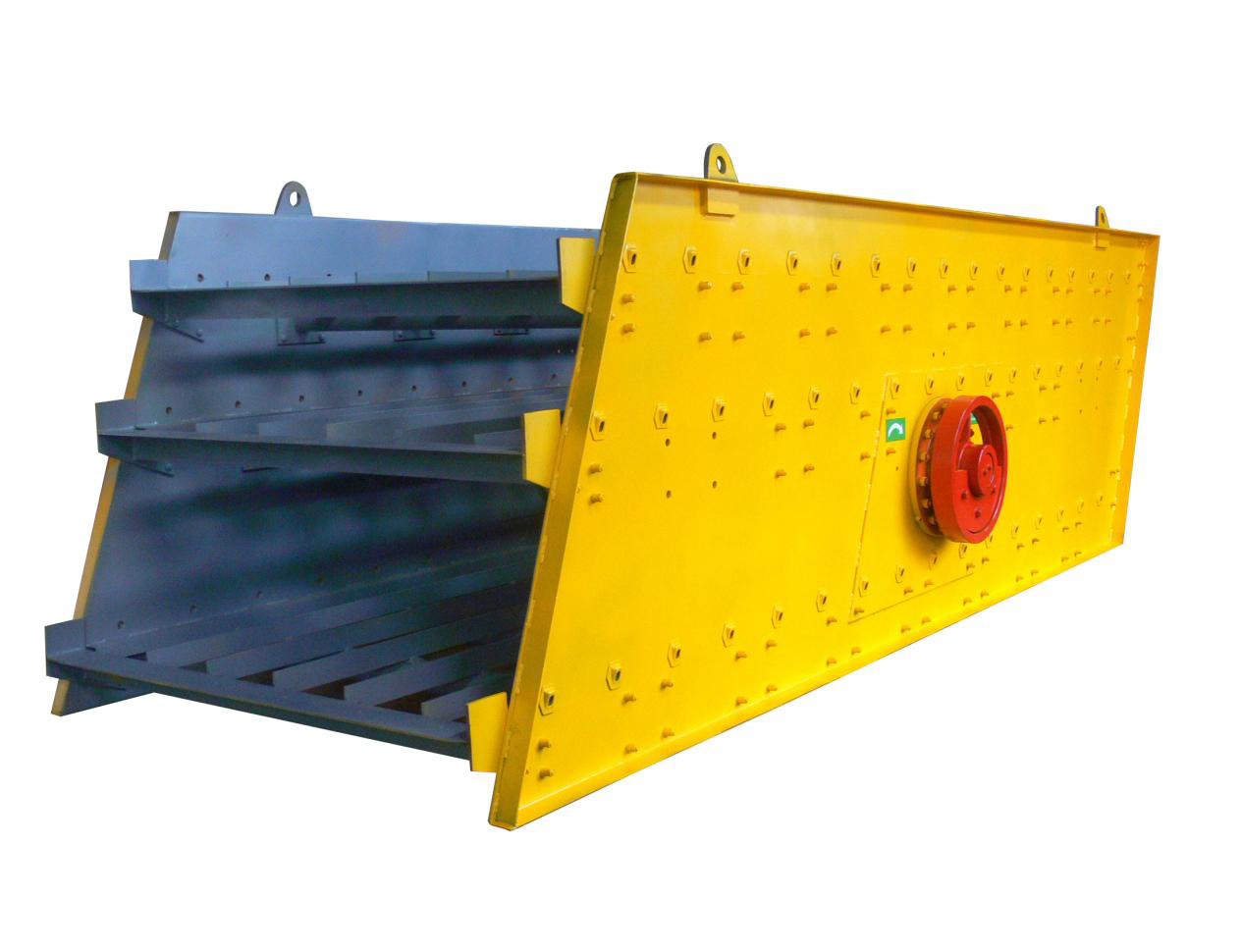

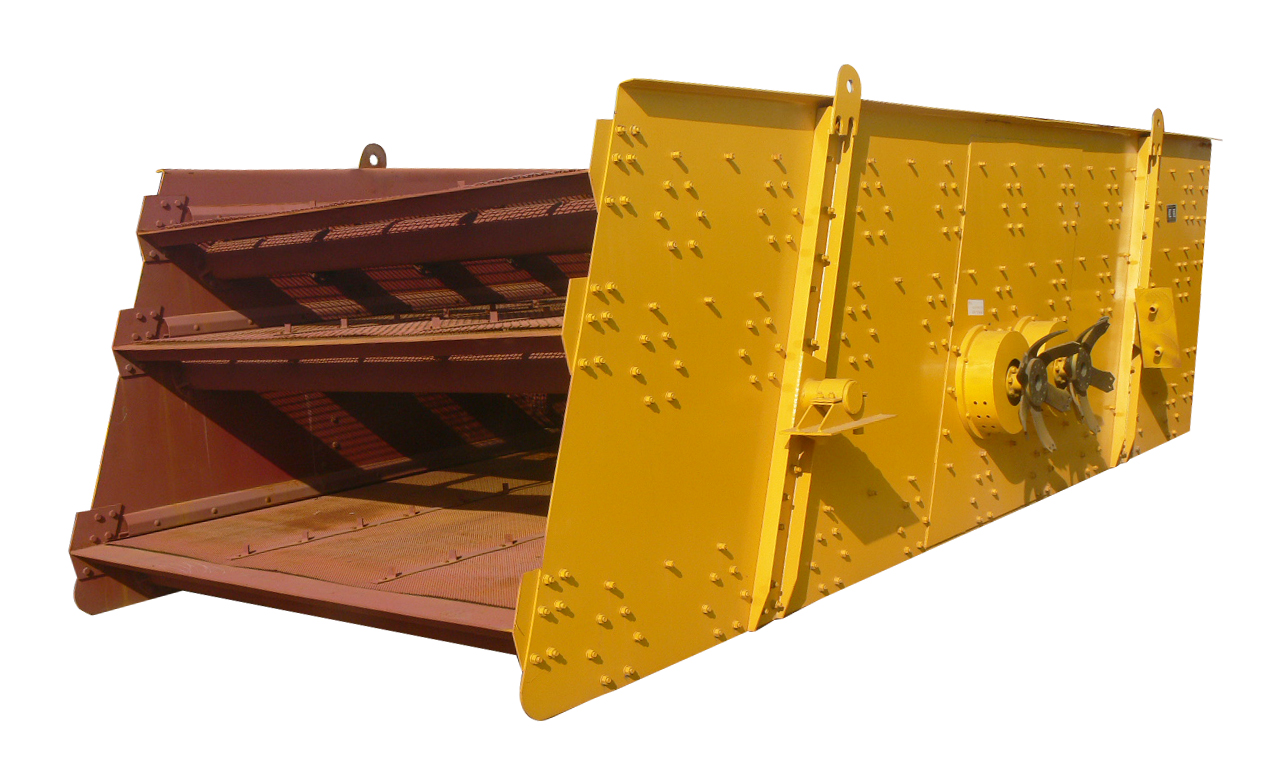

YK series Vibrating Screen

YK or YA series Circular Vibrating Screens are widely used in sieving different sizes materials, and also used as a grading machine in coal dressing, construction material, electric and chemical industries.

Input size 0-400mm
Capacity 10-650tph
Processing material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore, coal and so on
Description

Vibrating screen are used to separate material into different sizes for further processing. Material is delivered onto the screen surface where it is moved by being vibrated and rolled with a circular motion.The PYM Vibrating Screen has earned its name from the long semicircular motion which makes this machine one of the most efficient designs to date.

Working principle

A vibrating Screen mainly consists of screen box, screen mesh, vibrator, damping spring device, chassis and other components. Driven by the motor and V-belt, the eccentric block of the vibrating screen would rotate at a high speed, which exerts strong centrifugal inertia force to stimulate the screen box move in a circular motion within specific amplitude. During operation, materials on the inclined screen surface are subjected to the impulse transmitted from the screen box so that they are put in a continuous throwing motion, in this period, particles smaller than the mesh size are sieved out and divided into different sizes.

Product Advantage

1.Firm structure
2.Powerful vibrating force
3.High efficiency screening
4.Lower vibrating noise
5.Convenient to maintain

Technical Parameters

Model

Screen deck

Max.feed size
(mm)

Capacity   (t/h)

Motor power
 (kw)

Dimension
(L×W×H)
(mm)

Weight
(t)

2YA1230

2

200

10-90

5.5

3502×2127×1868

2.34

3YA1230

3

200

30-90

7.5

3538×2168×2245

3.05

2YA1548

2

200

50-190

15

5745×2573×3367

5.5

3YA1548

3

200

50-200

15

5909×2573×3367

6.08

4YA1548

4

200

50-200

18.5

5909×2573×3845

6.75

2YA1860

2

200

50-280

18.5

6965×2971×3276

7.2

3YA1860

3

200

50-300

18.5

7129×2971×3744

7.7

4YK1860

4

400

80-320

22

6417×3439×4276

8.2

2YK2160

2

400

100-330

30

7005×3470×3654

7.5

3YK2160

3

400

100-380

45

7172×3528×4133

8.2

4YK2160

4

400

120-430

45

7326×3545×4523

10.3

2YK2460

2

400

100-380

37

7010×3796×3654

8.5

3YK2460

3

400

160-450

45

7176×3816×4133

9.2

4YK2460

4

400

160-450

55

7328×3896×4523

12

2YK3070

2

400

150-600

2*18.5

7970×4465×4764

15

3YK3070

3

400

150-650

2*22

8225×4582×4822

16

4YK3070

4

400

150-650

2*22

8110×4662×5310

17
