Crushing Equipment

Home / PRODUCT / Crushing Equipment

  • /img/hydraulic_jaw_crusher.png

Hydraulic Jaw crusher

Comparing with the traditional jaw crusher,it has the features of larger capacity, automatic hydraulic design, convenient adjustments, simple operations.

Input Size: 0-1020mm
Capacity: 0.6-1000TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore
Description

Euro-style jaw crusher is a new type jaw crusher absorbing the world advanced technology, designed according to users’ feedback from the field and our 20 years manufacturing experience.

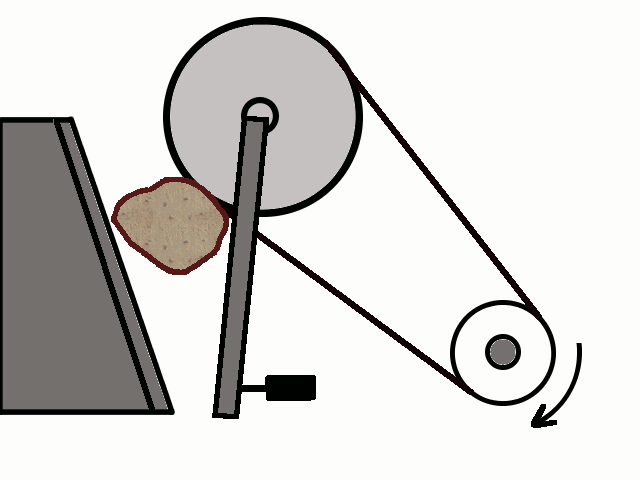

Working principle

A jaw crusher uses compressive force for breaking of particle. This mechanical pressure is achieved by the two jaws of the crusher of which one is fixed while the other reciprocates. A jaw crusher consists of a set of vertical jaws, one jaw is kept stationary and is called a fixed jaw while the other jaw called a movable jaw, moves back and forth relative to it, by a cam or pitman mechanism, acting like a class II lever or a nutcracker, to crush the big stone into small pieces.

Product Advantage

1.Strong and reliable structure.

2.High crushing ratio with large output capacity.

3.Wedge design setting adjustment which allows for the production of different sized material.

4.V-shaped design allows for feeding of bulk volumes of large sized material into the crushing cavity where there are no dead zones, making this machine highly productive and very efficient.

5.Lubrication system - safe and reliable, easy to maintain.

6.Can be used in stationary or semi-mobile type.

7.The eccentric shaft is fitted with four bearings,two on each side,S which extends service life.

Technical Parameters

Model

Max feeding size (mm)

Min discharge size (mm)

Power (kw)

Crushing capacity (t/h)

End discharge opening size (mm)

10

15

25

30

40

50

60

70

80

100

125

150

200

225

250

300

HV04

400×600

50

37











26



38

45

60

75











HV05

500×700

50

55











40



60

70

90

112

130









HV0509

500×900

50

75











45



72

85

100

130











HV06

600×900

80

75

















105

130

160

182









HV08

750×1060

100

110



















180

210

237

294







HV09

900×1200

100

160



















210

250

280

320

350





HV10

1000×1200

125

200





















265

302

370

402





HV0813

800×1350

100

220



















250

300

340

420

450





HV1015

1000×1500

125

220





















310

350

440

480

510



HV12

1200×1500

150

220























415

500

540

580

630

Electrical requirement

380 to 420V, AC(50/60Hz) or according to local standard

Temperature range

-50℃ to 70℃

Lubricating system

Auto control lubrication oil station, accident alert

Dischargeable system

Hydraulic system

Raw material water content

≤20%

Design Type

Euro Type

Crush method

Stone to stone crushing
