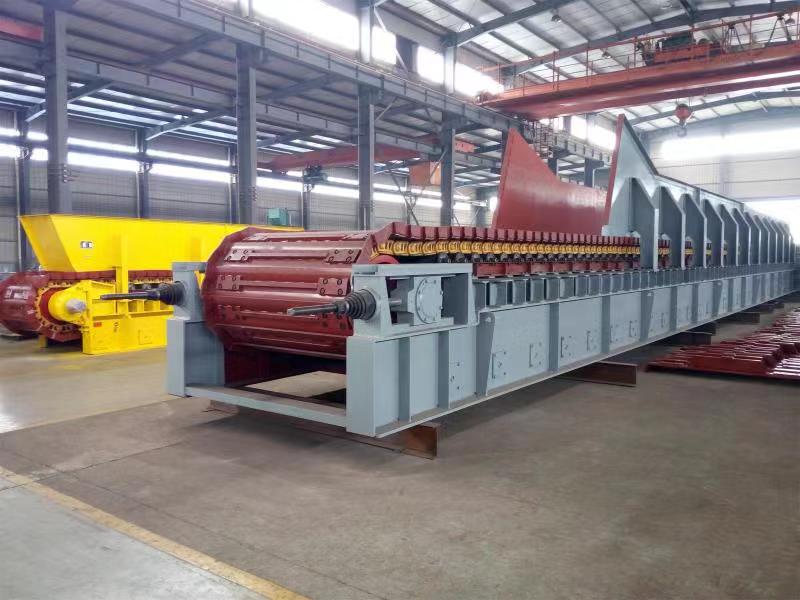

  • /img/heavy_duty_apron_feeder.jpg

Heavy-duty Apron Feeder

Heavy-duty apron feeder can be used for horizontal or inclined direction from the warehouse to the crusher, conveyor or other work or loose mechanical transport all kinds of bulk-like material.

Feeding size 0-1800mm
Capacity: 50-900tph
Material:

Coal, Ferrous metal ore, non-ferrous metal ore, river pebble, limestone, dolomite, granite, rhyolite, diabase, basalt etc.

Application:

Widely used in building materials, metallurgy, mining and other industries.

Description

ZBW series heavy-duty apron feeder is a new type of efficient conveying equipment independently researched and applied by modern advanced technology based on the experience of designing, manufacturing and service of transportation equipment for many years. The equipment is mainly used under the silo and the funnel with a certain pressure, and the various large bulk materials are uniformly and continuously conveyed to various crushing, screening and transporting equipment in short distance, especially suitable for the feeding of coarse crushed materials and short distance delivery.

Working principle

Heavy duty apron feeder working process is that the chain equipped serial plates is driven by the chain wheel. While the chain wheel is driven by the electric motor and reducer, the plates will moved so the blocks are fed out.

Product Advantage

1.Smoothly running and long service life

2. Super-large capacity with combination of crusher equipment

3. Low noise and power consumption

4. Supporting high impact loads came from strength of body

5.Good performance-conditioning, no flushing phenomenon of materials

6.Sealing structure body is employed, no pollution

Technical Parameters

Model

Plate width(mm)

Center distance of head and tail wheel(mm)

Feeding size (mm)

Capacity(t/h)

Motor power(kw)

Speed(m/s)

ZBW160-9

1600

9000

<800

27-270

30

0.01-0.07

ZBW180-8

1800

8000

<1000

<500

37

0.01-0.07

ZBW180-8.75

1800

8750

<1000

<500

37

0.01-0.07

ZBW180-9

1800

9000

<1000

<500

37

0.01-0.07

ZBW180-9.8

1800

9800

<1000

<500

37

0.01-0.07

ZBW180-10

1800

10000

<1000

<500

37

0.01-0.07

ZBW200-9.8

2000

9800

<1000

<500

37

0.01-0.07

ZBW220-10

2200

10000

<1200

<700

45

0.01-0.07

ZBW230-10

2300

10000

<1500

<800

45

0.01-0.07

ZBW240-10

2400

10000

<1600

<850

2*37

0.02-0.06

ZBW250-11.5

2500

11460

<1800

550-900

2*45

0.01-0.07
